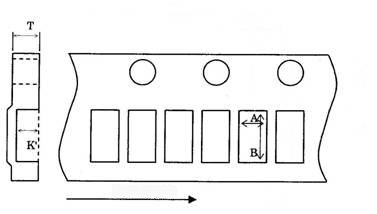

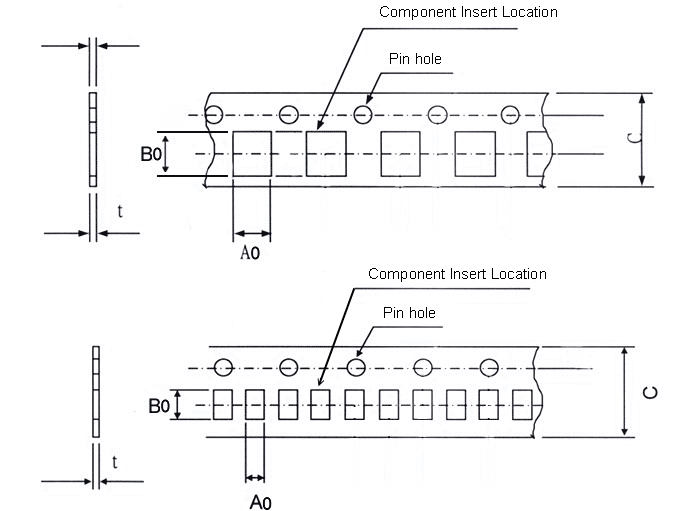

Punched Paper Carrier Tape |
Product Name |
Product Size |
|
|
Ao(mm) |
Bo(mm) |
t(mm) |
L(M) |
Paper Strip Name |
|
C1608-91-95N |
0.975¡Ó0.05 |
1.80¡Ó0.05 |
|
2100M |
JPC 95KK-2100K |
|
C1005-104-60N |
0.62¡Ó0.03 |
1.12¡Ó0.03 |
0.58¡Ó0.03 |
3200M |
BASK 60T-3200M |
|
C1608-93-95N |
|
1.80¡Ó0.05 |
|
2100M |
JPC 95KK-2100M |
|
C1709-99-95N |
1.05 ¡Ó0.05 |
1.85¡Ó0.05 |
0.95¡Ó0.05 |
2100M |
JPC 95KK-2100M |
|
C1005-3160-58N |
0.62 ¡Ó0.03 |
1.12¡Ó0.03 |
0.58¡Ó0.03 |
4800M |
BASK 58T-4800M |
|
C1005-105-60N |
0.58¡Ó0.03 |
1.12¡Ó0.03 |
0.58¡Ó0.03 |
3200M |
BASK 60T-3200M |
|
0805-1-95S |
1.50¡Ó0.05 |
2.30¡Ó0.05 |
0.95¡Ó0.05 |
2000M |
BASK 95T-2100M
LV95SA-2100M
MCC 95TR-2000M |
|
0805-2-95S |
1.63¡Ó0.05 |
2.40¡Ó0.05 |
0.95¡Ó0.05 |
2000M |
MCC 95TR-2000M |
|
0805-3-95S |
1.42¡Ó0.05 |
2.25¡Ó0.05 |
0.95¡Ó0.05 |
2000M |
BASK 95T-2100M
LV95SA-2100M |
|
0603-1-95S |
1.05¡Ó0.05 |
1.85¡Ó0.05 |
0.95¡Ó0.05 |
2000M |
BASK 95T-2100M
LV95SA-2100M
MCC95TR-2000M |
|
0603-2-95S |
1.10¡Ó0.05 |
1.90¡Ó0.05 |
0.95¡Ó0.05 |
2000M |
BASK 95T-2100M
LV95SA-2100M
MCC 95TR-2000M |
|
0402-3-60N |
0.70¡Ó0.03 |
1.18¡Ó0.03 |
0.60¡Ó0.03 |
3200M |
BASK 60T-3200M |
|
0402-4-60N |
0.65¡Ó0.03 |
1.15¡Ó0.03 |
0.60¡Ó0.03 |
3200M |
BASK 60T-3200M |
|
0402-5-60N |
|
1.12¡Ó0.03 |
0.60¡Ó0.03 |
3200M |
BASK 60T-3200M |
|
1608-06-75S1 |
0.95¡Ó0.05 |
1.80¡Ó0.05 |
0.75¡Ó0.05 |
3200M |
LV75SA-3200M
BASK 75T-3200M |
|
0402-7-60N |
0.60¡Ó0.03 |
1.12¡Ó0.03 |
0.60¡Ó0.03 |
3200M |
BASK 60T-3200M |
|
0402-6-60TN |
|
1.12¡Ó0.03 |
0.60¡Ó0.03 |
3200M |
BASK 60T-3200M |
|
0402-1-43N |
0.62¡Ó0.03 |
1.12¡Ó0.03 |
0.43¡Ó0.03 |
3200M |
BASK 43T-3200M |
|
0402-1-60N |
0.62¡Ó0.03 |
1.12¡Ó0.03 |
0.60¡Ó0.03 |
3200M |
BASK 60T-3200M |
|
R1005-J4-42N |
0.64¡Ó0.03 |
1.11¡Ó0.03 |
0.42¡Ó0.03 |
4200M |
BASK 42T-4200M |
|
R1608-J2-60N |
1.10¡Ó0.05 |
1.90¡Ó0.05 |
0.60¡Ó0.03 |
5000M |
BASK 60TP-5000M |
|
R1608-P2-60N |
1.10¡Ó0.05 |
1.90¡Ó0.05 |
0.60¡Ó0.03 |
5000M |
BASK 60TP-5000M |
|
R1005-2RP2-42N |
1.18¡Ó0.05 |
1.18¡Ó0.05 |
0.42¡Ó0.03 |
4200M |
BASK 42T-4200M |
|
R1005-4RP2-42N |
1.20¡Ó0.05 |
2.20¡Ó0.05 |
0.42¡Ó0.03 |
4200M |
BASK 42T-4200M |
|
0603-2-60N |
1.10¡Ó0.05 |
1.90¡Ó0.05 |
0.60¡Ó0.03 |
3200M |
BASK 60T-3200M |
|
1206-1-75N |
2.00¡Ó0.05 |
3.55¡Ó0.05 |
0.75¡Ó0.05 |
3200M |
LV75SA-3200M
BASK 75T-3200M |
|
0805-2-75N |
1.63¡Ó0.05 |
2.40¡Ó0.05 |
0.75¡Ó0.05 |
3200M |
LV75SA-3200M
BASK 75T-3200M |
|
L1608-93-95TS |
0.95¡Ó0.05 |
1.80¡Ó0.05 |
0.95¡Ó0.05 |
2000M |
LV95SA-2100M
BASK 95T-2100M |
|
Notes:
